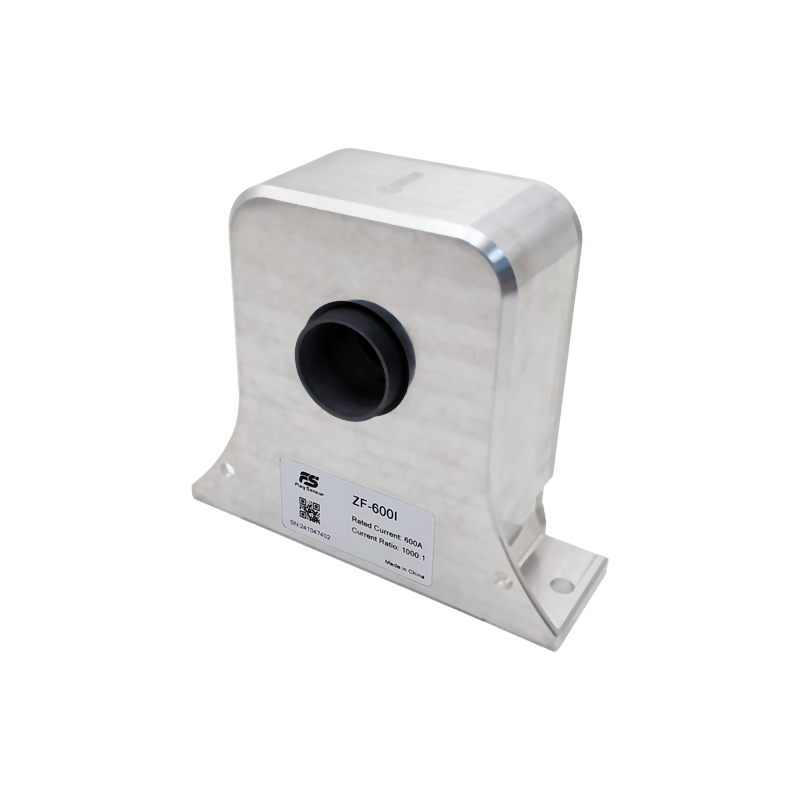

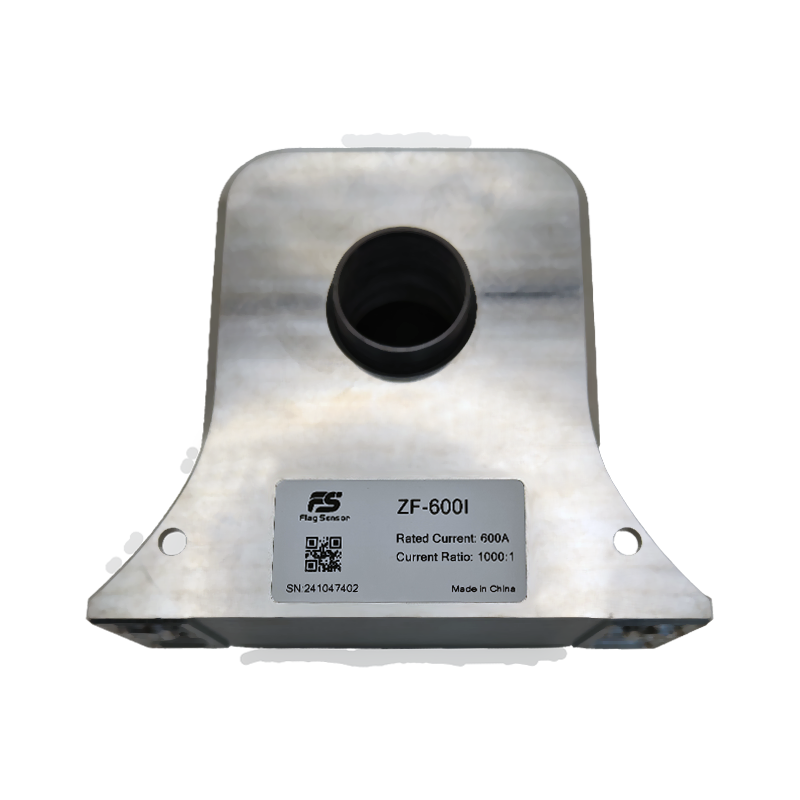

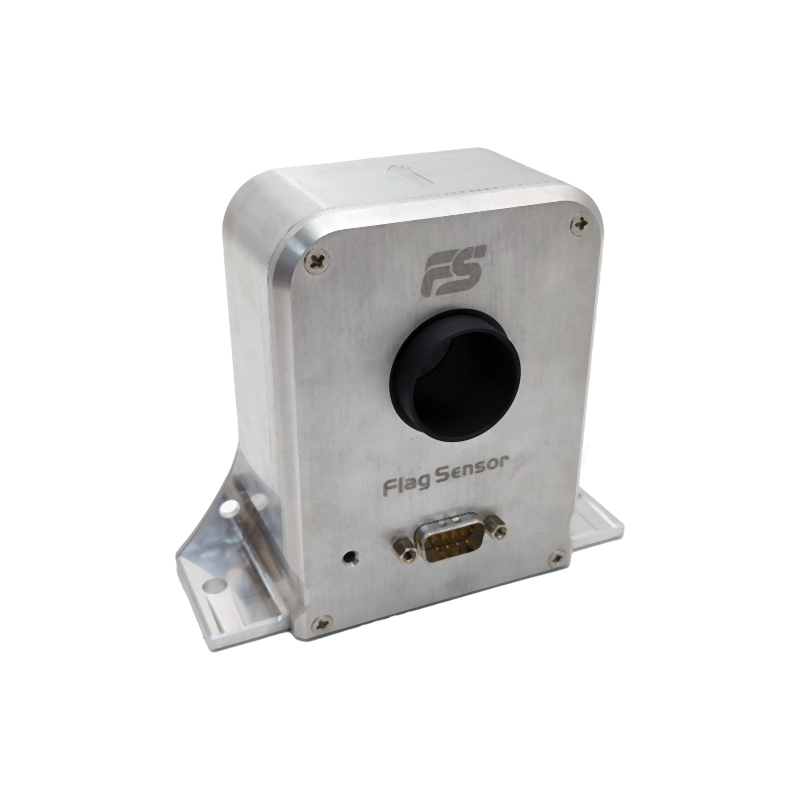

ZFxxxI is a ultra-high precision DC current transducer that can continuously measure DC current up to ±600A. ZFxxxI also can measure AC current. The primary current is transformed into a proportional secondary current with a 1000:1 ratio. In addition, ZFxxxI has many advantages, such as excellent linearity, ultra-high precision, and low noise.
YES
10 Days
24 months
| Parameter | Test conditions | Minimum | Typical values | Maximum |
| Transfer ratio | 1000:1 | |||
| Accuracy | @ 25°C | ±10ppm of range | ||
| Linearity error | 4ppm | |||
| Small signal bandwidth(-3dB) | 1% of IPN | 800kHz | ||
| Step response time | 2.5us | |||
| Output offset current | @ 25°C | -1uA | 1uA | |
| Offset drift | 0.1uA/K | |||
| Offset changes with time changes | 0.2uA/month | |||
| Offset changes with supply voltage changes | 0.1uA/V | |||
| Output noise(reference to secondary) | 0.8uAPP | |||
| Output load | 0Ω | 7Ω | ||
| Power supply voltage | ±15V | |||
| Power dissipation | IPN = 600A | 10W |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -40°C ~ 85°C |
| Weight | 550g |
| Hot swapping | Not supported |
| Output valid indicator | LED (pure green) |
