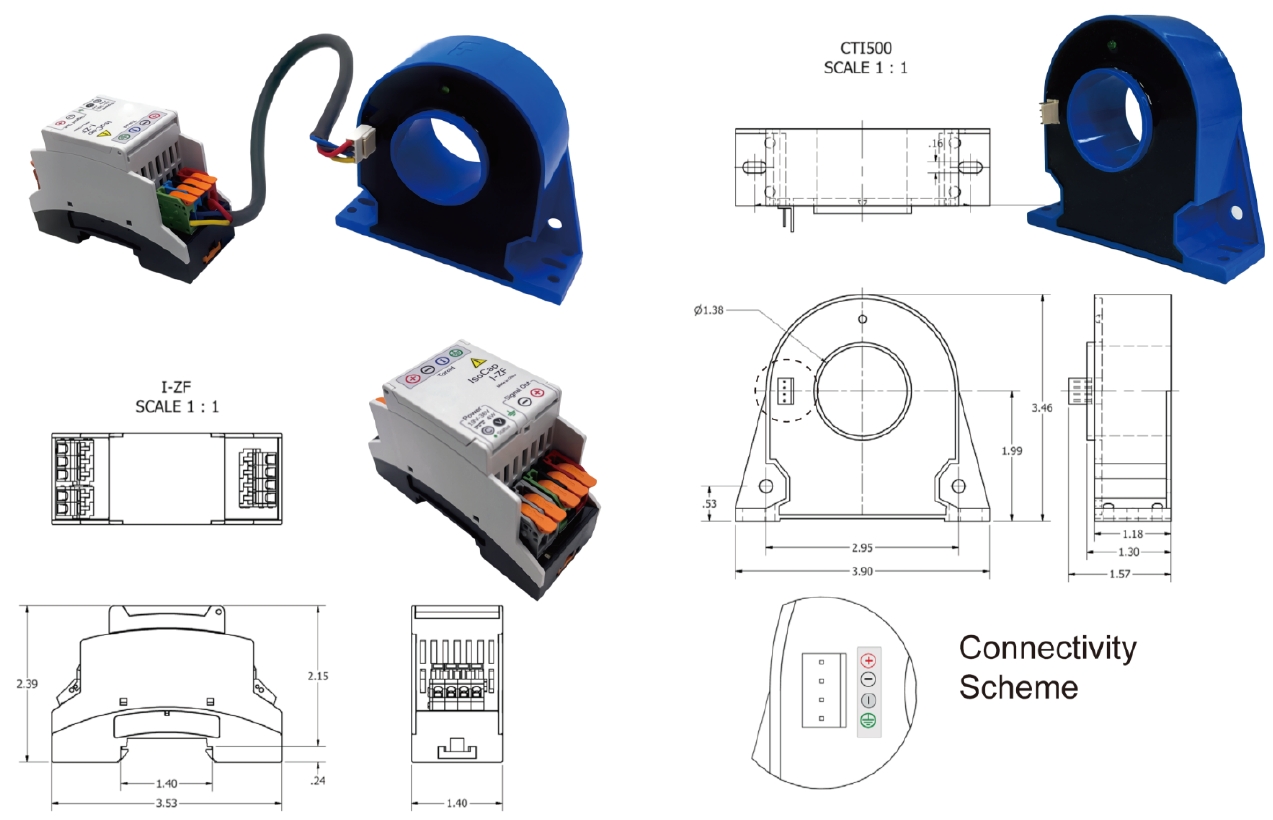

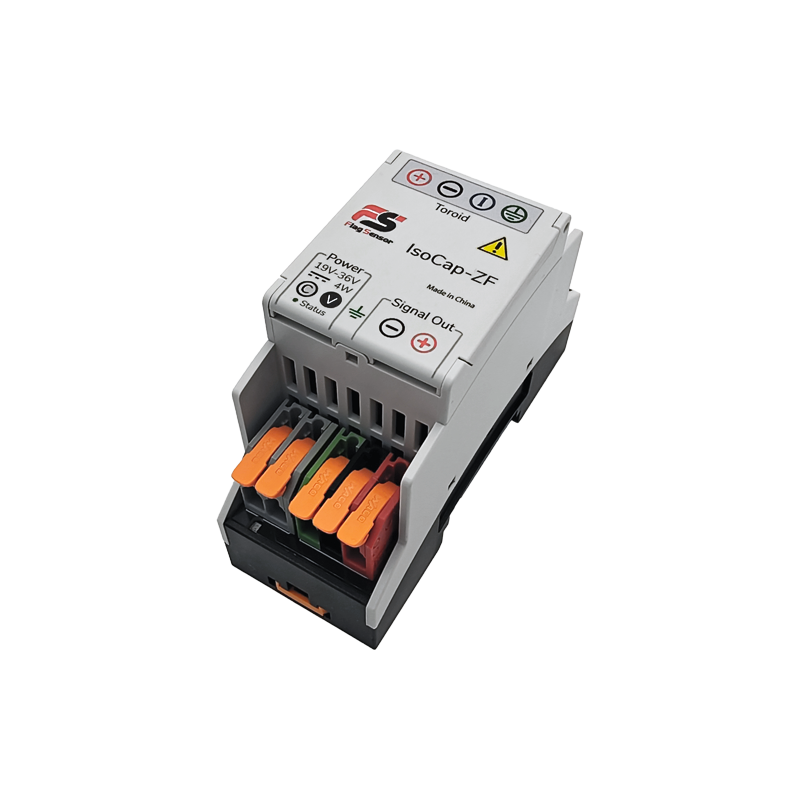

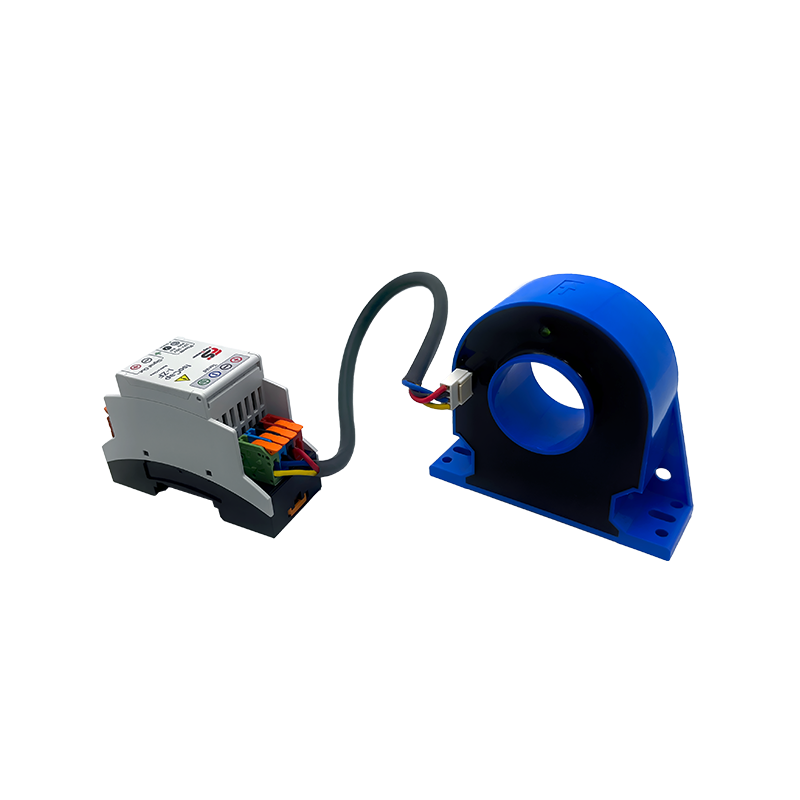

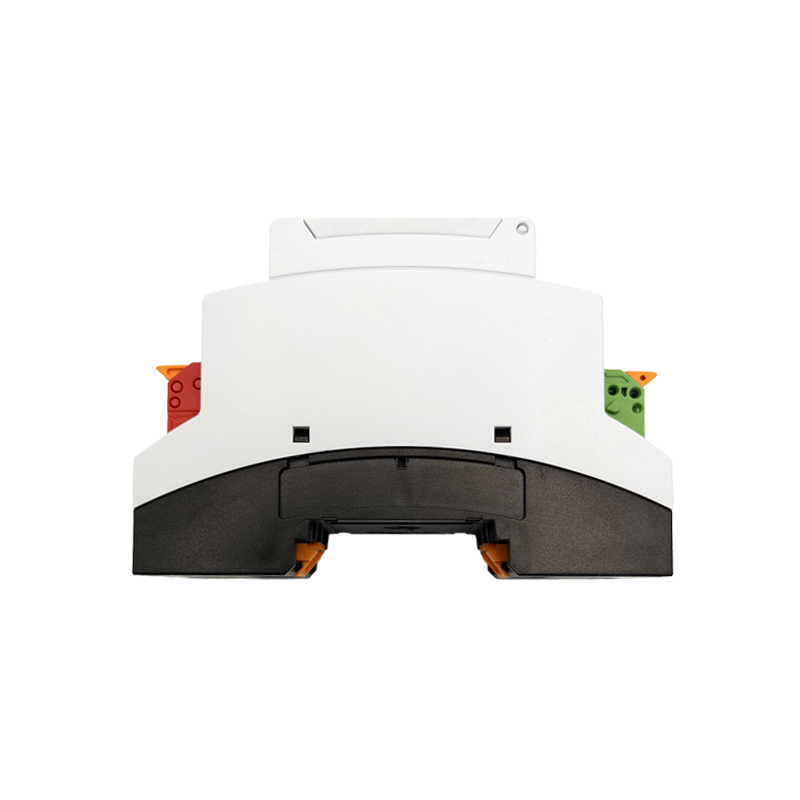

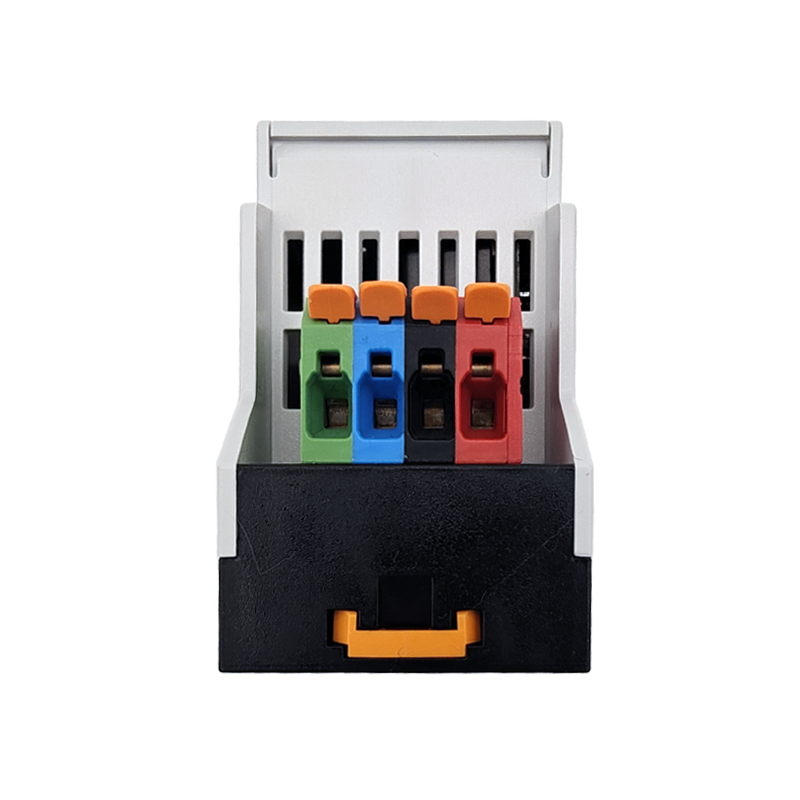

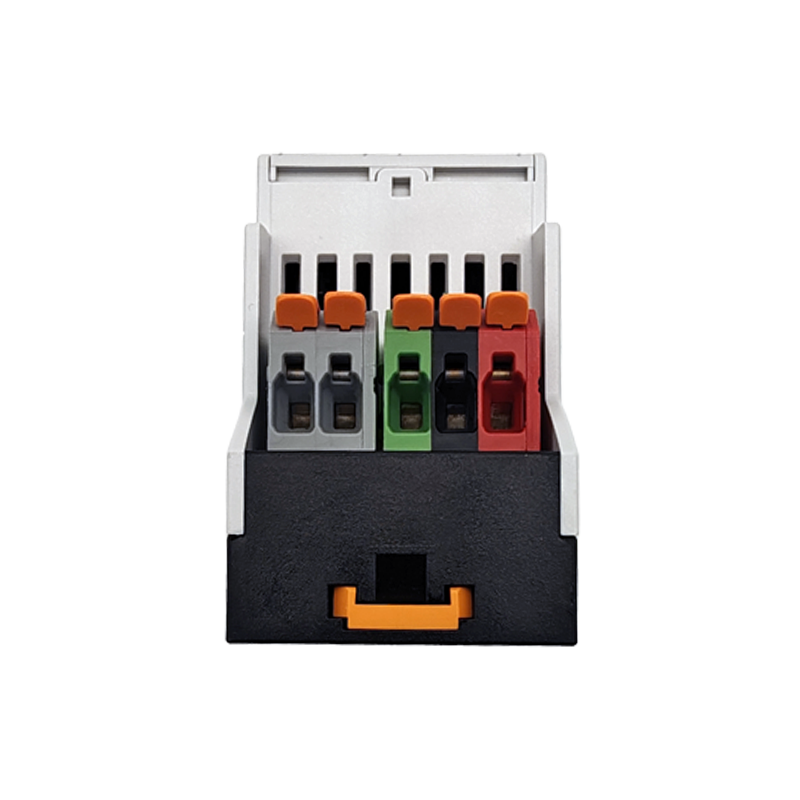

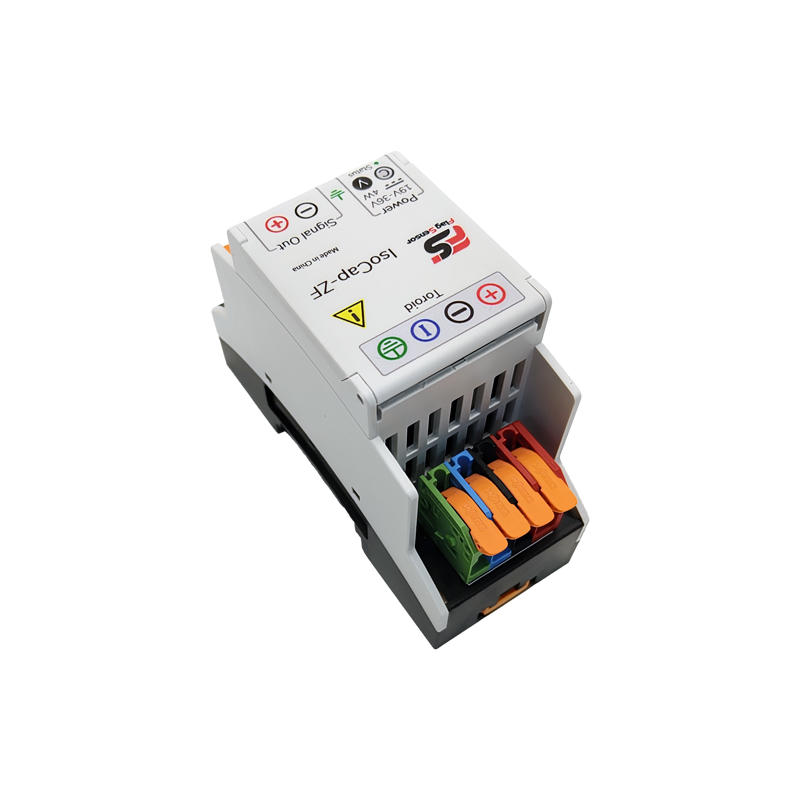

IsoCap-ZF is a galvanic isolated current sensor that can measure current from ±10A to ±2000A, it consists of two parts: measuring head and signal processing module. IsoCap-ZF has multiple measurement ranges selection, it can be customized for specific requirement. IsoCap-ZF is a non-contact current sensor, the tested current in the conductor passing through the aperture of the measuring head, and the signal processing module converts the output to ±10V.
| Input ranges | Output voltage | Accuracy |
| ±10A ~ ±2000A | ±5V or ±10V | ±0.02%(A) or ±0.1%(B) |
YES
10 Days
24 months
| Parameter | Test conditions | Minimum | Typical values | Maximum |
| Input ranges | ±10A | ±2000A | ||
| Accuracy | @ 25°C | ±0.02% of range or ±0.1% of range | ||
| Nonlinear error | 0.01% | |||
| Maximum delay | 1us | |||
| Output offset voltage | @ 25°C | -1mV | 1mV | |
| Output voltage | ±5V differential pair or ±10V differential pair or customized | |||
| Phase shift (@ 50Hz) | @ 25°C | 0.01° | ||
| Power supply voltage | 19V | 24V | 36V | |
| Power supply power | 4W |
| Operating temperature | -15°C ~ 70°C |
| Storage temperature | -25°C ~ 80°C |
| Weight | 78g |
| Mounting type | DIN rail mounting |
| Number of channels | 1 channel |
| Hot swapping | Not supported |
