The PCU13 series are mini-precision current transformers. The CT is small size, PCB mounting and low cost
Measuring range:50 - 60 Hz Measurement Frequency:0 - 100 A Special indicators:customizable.YES
10 Days
24 months
The PCU13 series are mini-precision current transformers. The CT is small size, PCB mounting and low cost
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCU13-30 | 30 A | CURRENT OUTPUTS @ 5 mA, 10 mA, 15m A, 20 mA, 30 mA, 50 mA Output can be customized by customer |
| PCU13-50 | 50 A | |
| PCU13-60 | 60 A | |
| PCU13-80 | 80 A | |
| PCU13-100 | 100 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

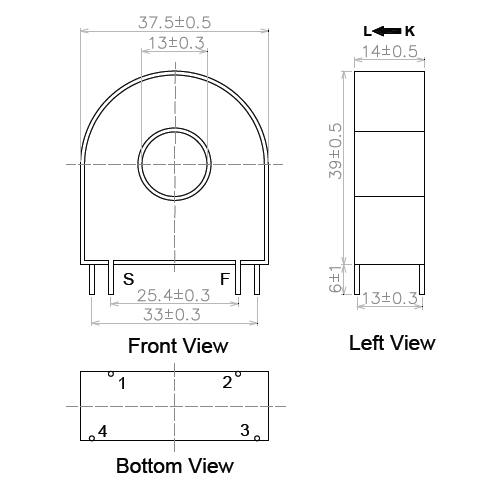

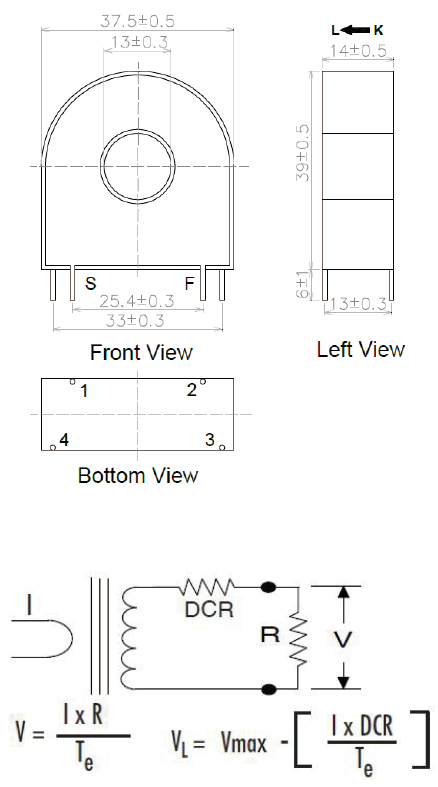

| 0.512” window opening (ID) |
| Custom design Turns-Ratio available |
| Approximate weight 50 g |
| Standard Input Current 0 - 100 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.1, 0.2, 0.5, 1 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 85 °C |
