PCOL13 mini-precision current transformers. The CT is Small size and low cost
Measuring range:0 - 100A Measurement Frequency:50 - 60Hz Precision range:0.1%, 0.2%, 0.5%, 1%YES
10 Days
24 months
The PCOL13 series are UL listing mini-precision current transformers. The CT is small size and low cost.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCOL13-10 | 10A | OUTPUTS @ 5mA, 10mA, 15mA, 20mA,100mA, VOLTAGE OUTPUTS @ 0.333V, 0.5V, 1V, 2V Output can be customized by customer |
| PCOL13-30 | 30A | |
| PCOL13-50 | 50A | |
| PCOL13-80 | 80A | |
| PCOL13-100 | 100A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| APPLICATIONS |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

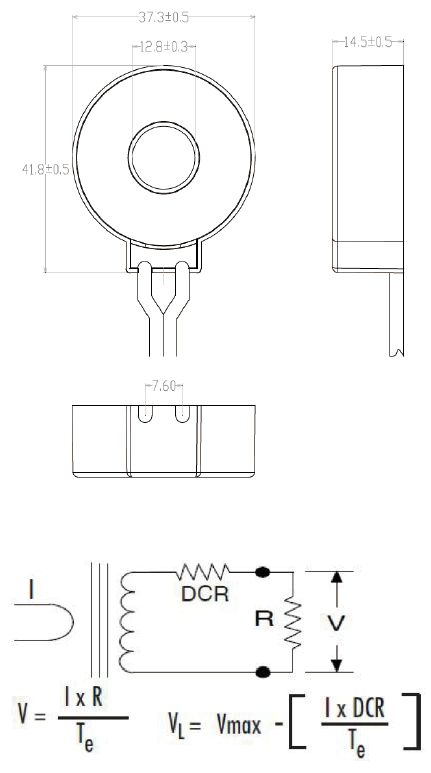

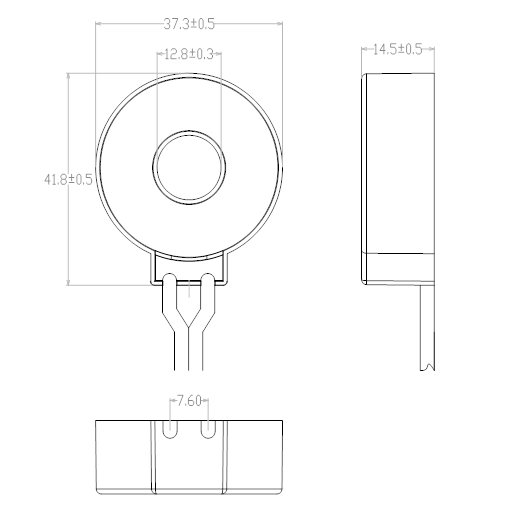

| 0.512” window opening (ID) |
| Rated amp 0 - 100A |
| Frequency 50Hz - 60Hz |
| SPECIFICATIONS |
| Standard accuracy 0.1, 0.2, 0.5 |
| Insulation Voltage 35 10Vac/1min |
| Storage Temp. - 45°C to + 85°C |
