The PCU09 series are mini-precision current transformers. The CT is small size, PCB mounting and low cost.
Measuring range:0 - 70 A Measurement Frequency:50 - 60 Hz Special indicators:customizable.YES
10 Days
24 months
The PCU09 series are mini-precision current transformers. The CT is small size, PCB mounting and low cost.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCU09-10 | 50 A | CURRENT OUTPUTS @ 5 mA, 10 mA, 15 mA, 20 mA, 30 mA, 50 mA, 70 mA, can be customized by customer |
| PCU09-20 | 75 A | |
| PCU09-50 | 100 A | |
| PCU09-60 | 150 A | |
| PCU09-70 | 200 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

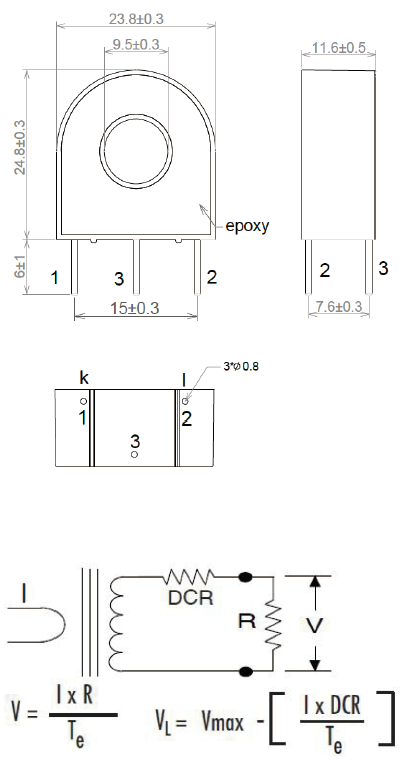

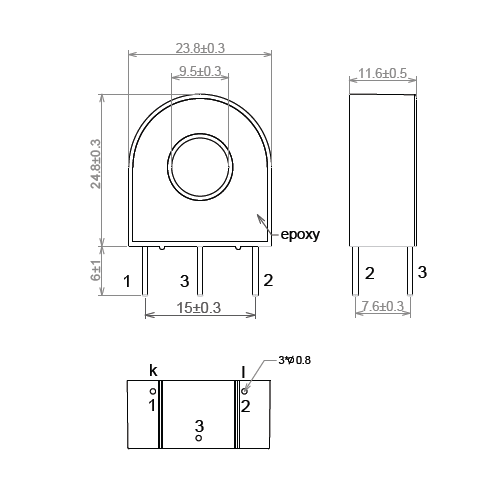

| 0.35” window opening (ID) |
| Custom design Turns-Ratio available |
| Approximate weight 16.5 g |
| Standard Input Current 0.01 - 70 A |
| Frequency 50 Hz - 400 Hz |
| Standard accuracy 0.1, 0.2, 0.5 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 90 °C |
