The PCU07 series are mini-precision current transformers. The CT is small size, PCB mounting and low cost
Measuring range:50 - 60 Hz Measurement Frequency:0 - 60 A Special indicators:customizable.YES
10 Days
24 months
The PCU07 series are mini-precision current transformers. The CT is small size, PCB mounting and low cost.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCU07-05 | 5 A | CURRENT OUTPUTS @ 5 mA, 10 mA, 15 mA, 20 mA VOLTAGE OUTPUTS @ Not available for this model Output can be customized by customer |
| PCU07-10 | 10 A | |
| PCU07-20 | 20 A | |
| PCU07-30 | 30 A | |
| PCU07-60 | 60 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

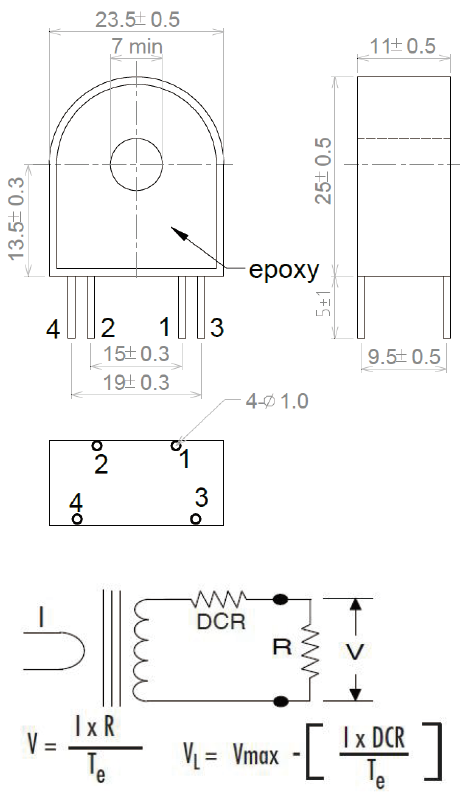

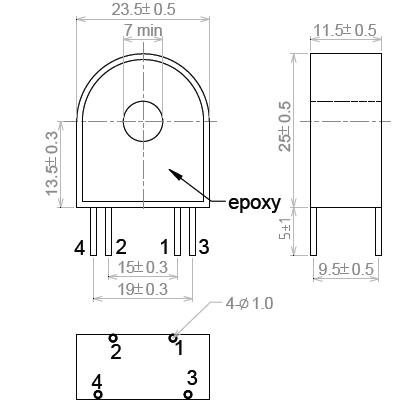

| 0.275” window opening (ID) |
| Custom design Turns-Ratio available |
| Approximate weight 15 g |
| Standard Input Current 0 - 60 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.2, 0.5 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 85 °C |
