The PCO13 series are mini-precision current transformers. The CT is Small size and low cost.
Measuring range:0 - 100 A Measurement Frequency:50 - 60 Hz Special indicators:customizable.YES
10 Days
24 months
The PCO13 series are mini-precision current transformers. The CT is Small size and low cost.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCO13-50 | 50 A | CURRENT OUTPUTS @ 10 mA, 20 mA, 30 mA, 40 mA 50 mA,100 mA, Output can be customized by customer |
| PCO13-60 | 60 A | |
| PCO13-80 | 80 A | |
| PCO13-100 | 100 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

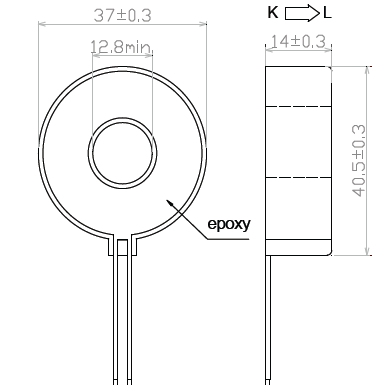

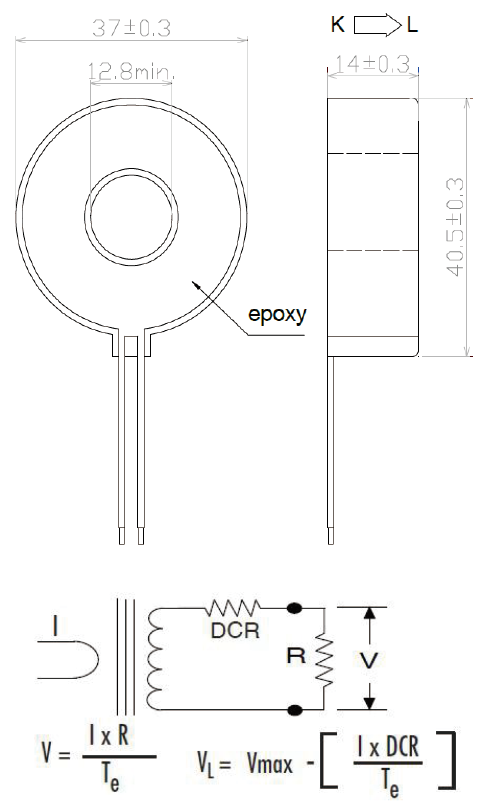

| 0.512” window opening (ID) |
| Custom design Turns-Ratio available |
| Approximate weight 46 g |
| Standard Input Current 0 - 100 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.2, 0.5, 1 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 70 °C |
| Storage Temp. - 45 °C to + 85 °C |
