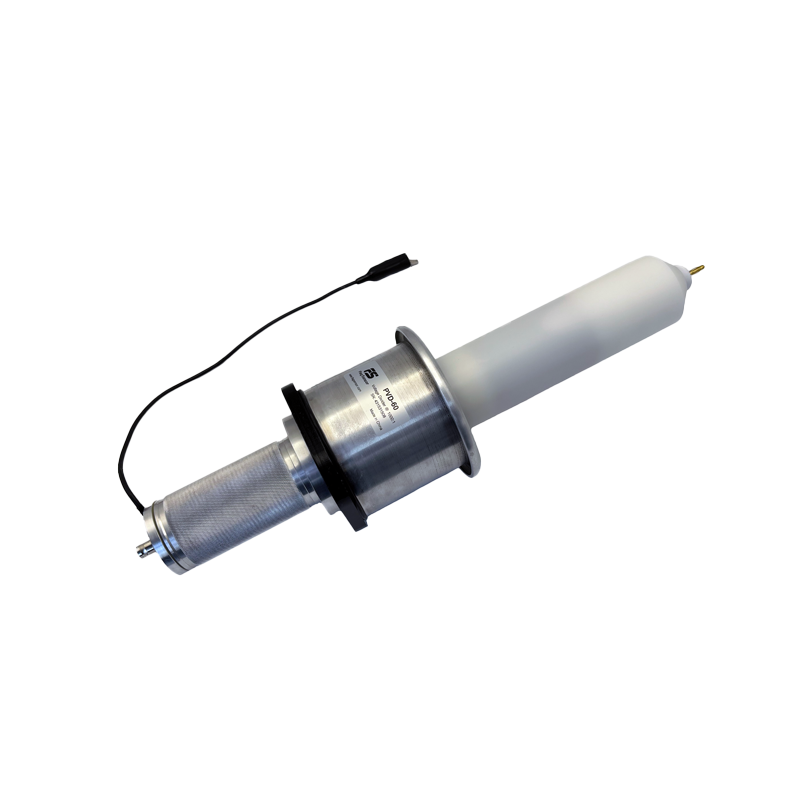

The PVD-60 is a type of wideband voltage divider which is designed to measure single-ended high voltage. The PVD-60 can measure multiple single-ended signal such as DC, AC and pulse. The PVD-60 scaled down its input signal and outputs low voltage, which can easily be processed by universal instruments, such as oscilloscope, digital multimeters, etc. You can measure DC voltages up to 60kV RMS and pulses up to 100kV peak. The 120MHz bandwidth enables you to measure fast, high-voltage signals.
YES
10 Days
12 months
| Parameter | Test conditions | Minimum | Typical values | Maximum |
| Standard Divider Ratio | 1000 : 1 | |||
| Max Peak Voltage (DC,AC) | 60kV | |||
| Max Peak Voltage (Pulse) | 100kV | |||
| Accuracy (DC - 2 Hz) | @ 25°C | 0.15% of range | ||
| Accuracy (2Hz - 200Hz) | @ 25°C | 1% of range | ||
| Accuracy (200Hz - 5MHz) | @ 25°C | 1.5% of range | ||
| Accuracy (> 5MHz) | @ 25°C | 4% of range | ||
Bandwidth (-3dB) | DC-120MHz | |||
Nonlinear error | 0.02% | |||
| Rise time | 3ns | |||
| Input Impedance | 400MΩ / 12pF | |||
| Input Signal Type | single-ended | |||
| Output Signal Type | single-ended |
| Operation temperature | -15°C ~ 70°C |
| Storage temperature | -25°C ~ 80°C |
| Input connector | 4mm Banana plug |
| Output connector | BNC (jack) |
| BNC cable length | 4.5m |
