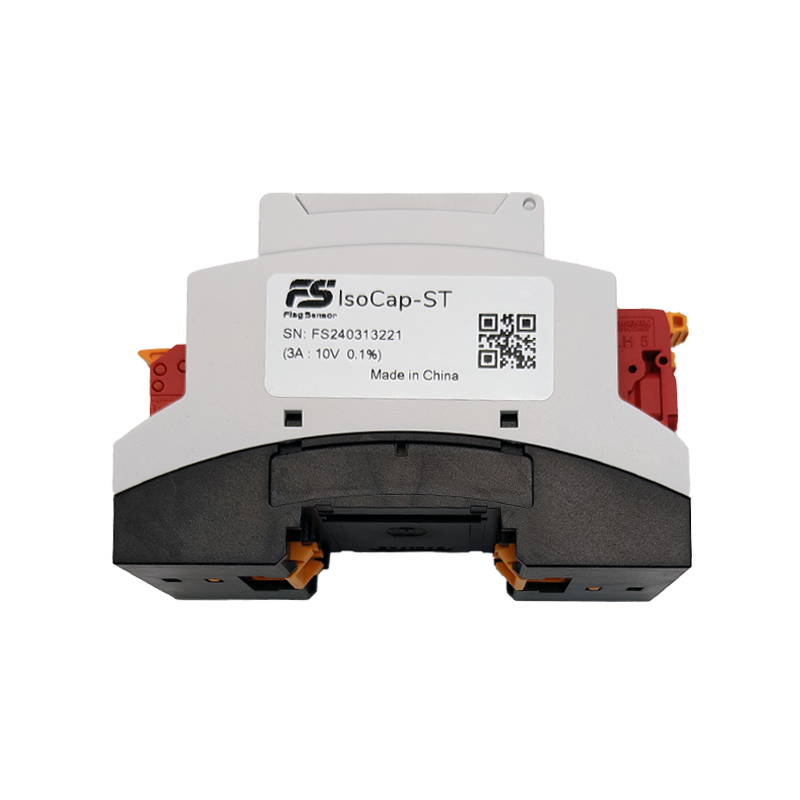

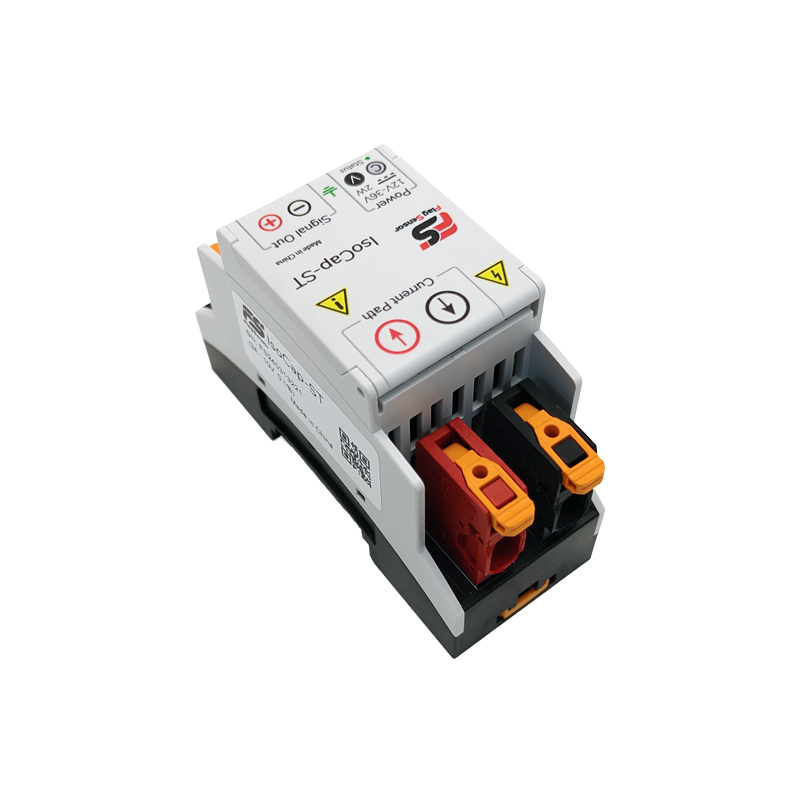

IsoCap-ST is a galvanic isolated current sensor that can measure voltage from ±3mA to ±100A, providing a cost-effective solution for current measurement. In addition, IsoCap-ST has multiple measurement ranges selection, it can be customized for specific requirement. IsoCap-ST has many advantages, such as small size, high precision, and DIN rail mounting.
| Input ranges | Output current | Accuracy |
| ±3mA ~ ±100A | ±5V or ±10V | ±0.1%(A) or ±0.2%(B) |
YES
10 Days
24 months
| Parameter | Test conditions | Minimum | Typical values | Maximum |
| Input ranges | ±3mA | ±100A | ||
| Accuracy | @ 25°C | ±0.1% of range or ±0.2% of range | ||
| Bandwidth (-3dB) | DC-100kHz | |||
| Nonlinear error | 0.03% | |||
| Maximum delay | 5us | |||
| Output offset voltage | @ 25°C | -1mV | 1mV | |
| Output voltage | ±5V differential pair or ±10V differential pair or customized | |||
Common mode rejection ratio (@ 50Hz) | @ 25°C | 100dB | ||
Phase shift (@ 50Hz) | @ 25°C | 0.05° | ||
| Power supply voltage | 12V | 24V | 36V | |
| Power supply power | 2W |
| Operating temperature | -15°C ~ 70°C |
| Storage temperature | -25°C ~ 80°C |
| Weight | 78g |

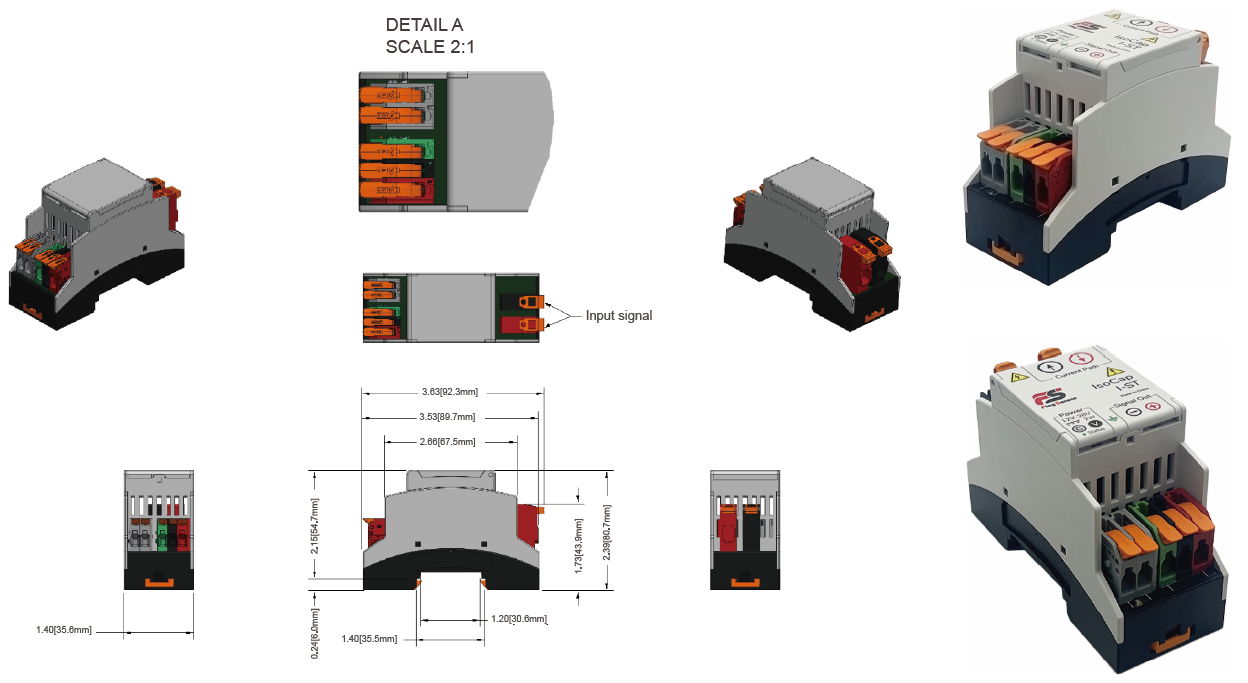

| Mounting type | DIN rail mounting / wall mounting |
| Number of channels | 1 channel |
| Hot swapping | Not supported |
