The Entube-Z generates a ± 2 V or ± 1 V scaled down version of its input signal, which can then be processed by most computer based measurement platforms.
YES
10 Days
24 months
| MODEL | ZRC-h-50 | ZRC-h-100 | ZRC-h-150 |
| Perimeter | 214 mm | 375 mm | 535 mm |
| Bore size | 50 mm | 100 mm | 150 mm |
| Current | 1A - 1000kA | ||
| Resistance | 10 - 3000 Ω | ||
| Large current | 500 kA | ||
| Signal line length | Default 2 m, customizable | ||
| Calibration | 1.1 mV/kA @ 50 Hz ± 5 % | ||
| Not calibrated | 10 mV/kA @ 50 Hz ± 5% | ||
| Internal resistance | uncalibrated 200 ppm/c | ||
| Error (center) | ＜ 0.5 % |
| Error (inner circle) | ＜ 1 % |
| Shield | 100 % |
| Insulation voltage | Coil 3000 V Signal line 1000 V |
| Position error | ± 1 % |
| Internal resistance temperature drift coefficient | Uncalibrated 200 ppm/ ℃ Calibration 50 ppm/℃ |
| Joint | PC |

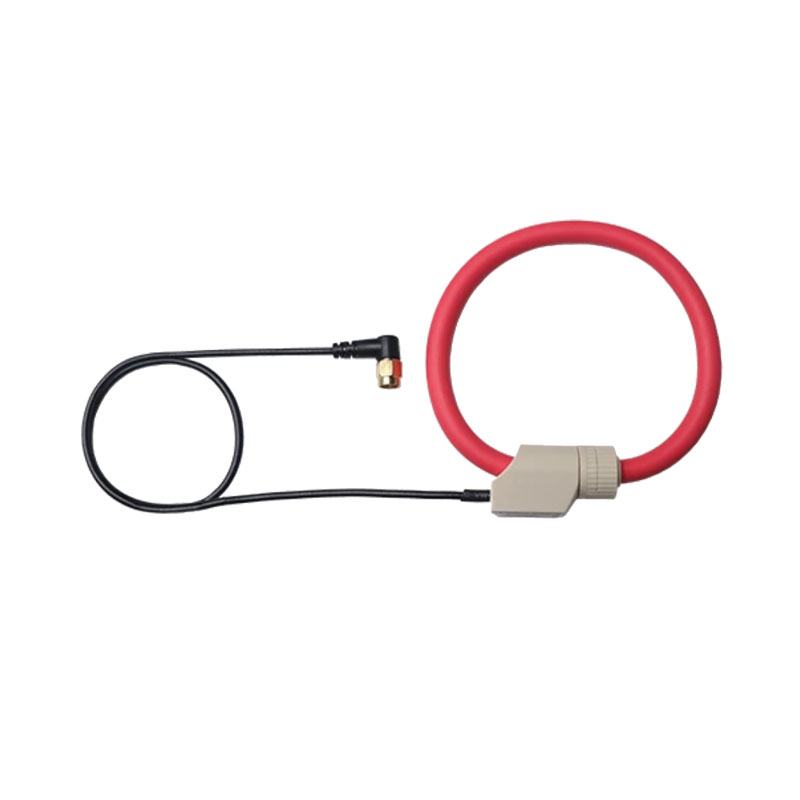

ZRC-h is a flexible current sensor that can be directly combined with portable devices such as power analyzers to form a very flexible system. Suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to
| Angle difference | ≤ 0.5° |
| Linearity | ± 0.2 % |
Do not forcefully pull
Do not bend forcefully
Do not package in a bent state
