The PCH30 series current transformer is compact、smaller than other models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected for the second terminal.
Measuring range:0 - 400 A Measurement Frequency:50 - 60 Hz Special indicators:customizable.YES
10 Days
24 months
The PCH30 series current transformer is compact、smaller than other models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected for the second terminal.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCH30-50 | 50 A | CURRENT OUTPUTS @ 50 mA, 100 mA, 1 A, 5 A Voltage OUTPUTS 0.333 V, 0.5 V, 1 V, 2 V Output can be customized by customer |
| PCH30-75 | 75 A | |
| PCH30-100 | 100 A | |
| PCH30-150 | 150 A | |
| PCH30-200 | 200 A | |
| PCH30-250 | 250 A | |
| PCH30-300 | 300 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

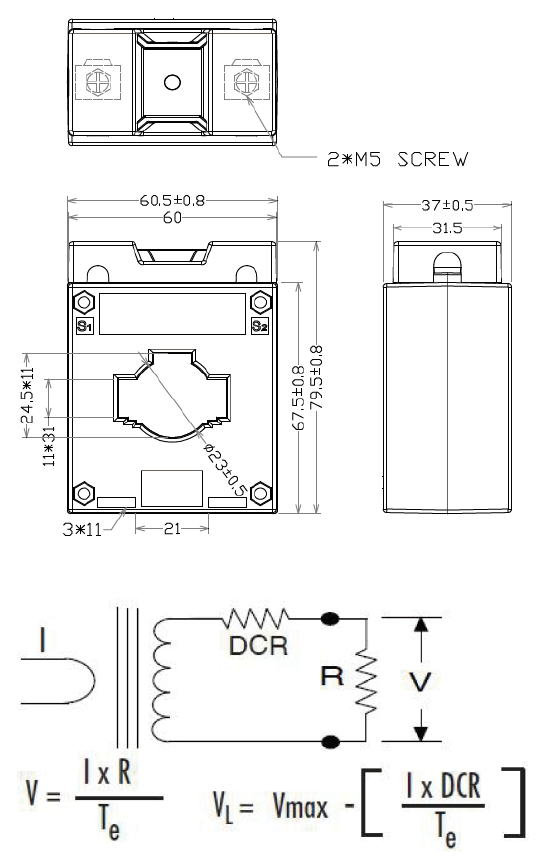

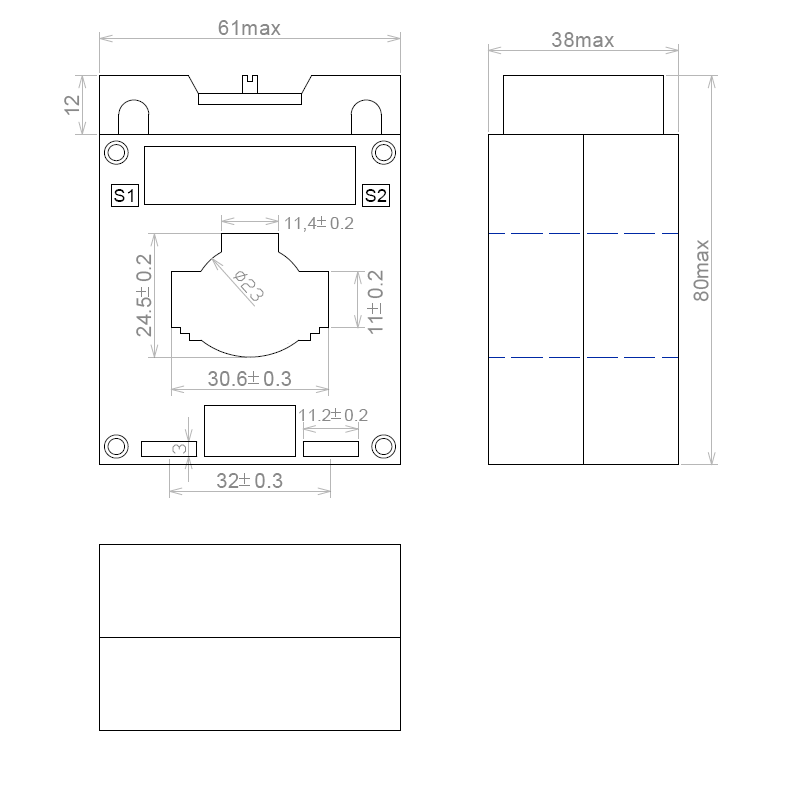

| 11 x 31mm window size |
| Custom design Turns-Ratio available |
| Output Terminal: M5 terminal |
| Approximate weight 250 g |
| Standard Input Current 0 - 400 A |
| Frequency 50 Hz - 60 Hz |
| Standard accuracy 0.1, 0.2, 0.5, 1, 3 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 85 °C |
