The PCU05 series are mini-precision current transformers. The CT is small size, PCB mounting and low cost.
Measurement Frequency:50 - 60 Hz Special indicators:customizable.YES
40 Days
365 months

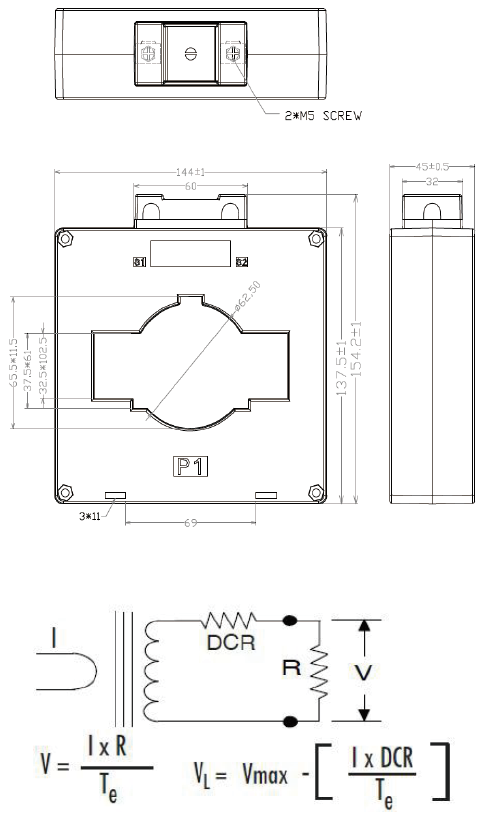

The PCH100 series current transformer is compact、smaller than other models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected for the second terminal.
| MODEL | INPUT CURRENT | AVAILABLE OUTPUT |
| PCH100-500 | 500 A | CURRENT OUTPUTS @ 50 mA, 100 mA, 1 A, 5 A Voltage OUTPUTS @ 0.333 V, 0.5 V, 1 V, 2 V Output can be customized by customer |
| PCH100-600 | 600 A | |
| PCH100-800 | 800 A | |
| PCH100-1000 | 1000 A | |
| PCH100-1200 | 1200 A | |
| PCH100-1500 | 1500 A | |
| PCH100-1800 | 1800 A | |
| PCH100-2000 | 2000 A |
| Energy and sub-metering products |
| Electrical load monitoring |
| Network equipment |
| Instruments and sensors |
| Control systems |
| Go GREEN initiatives |

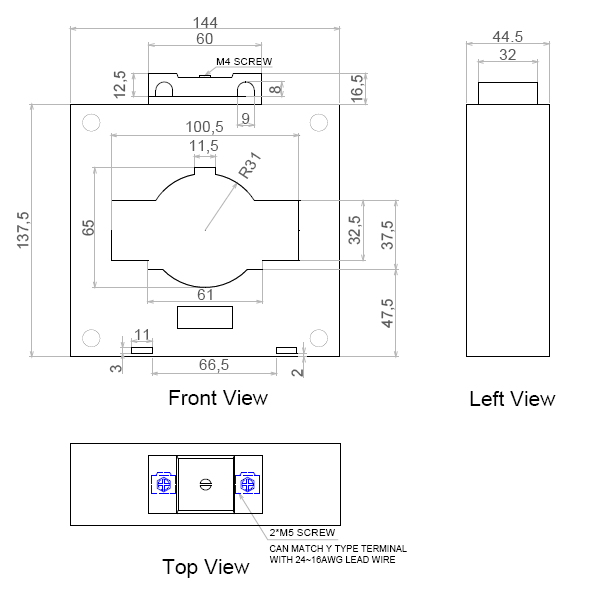

| 32.5 x 102.5 window size |
| Output Terminal: M5 terminal |
| Approximate weight 600 g |
| Standard Input Current 0.5 - 2000 A |
| Frequency 50 Hz - 400 Hz |
| Standard accuracy 0.1, 0.2, 0.5, 1, 3 |
| Insulation Voltage 4000 Vac / 1 min |
| Operating Temp. - 40 °C to + 65 °C |
| Storage Temp. - 45 °C to + 85 °C |
