For the electronic measurement of currents:DC,AC,pulsed,mixed, with a galvanic isolation between the primary (high power) circuit and the secondary (electronic) circuit.
YES
10 Days
24 months
For the electronic measurement of currents:DC,AC,pulsed,mixed, with a galvanic isolation between the primary (high power) circuit and the secondary (electronic) circuit.
| Primary nominal r.m.s. current | Ipn | 500 A |
| Primary current meas uring range | Ip | 0 ~ ± 580 A |
| ∆V0 at peak rated current | ∆V0 | 1.655 V @ lPN Vc=5 V, RL =10 KΩ |
| Supply voltage | Vcc | 4.5 ~ 10.5 VDC |
| Offset voltage | Vo | (VCC/2) ± 2 % @lp=0, TA=25 ℃ |
| Supply current | Ic | 7.2 mA type 8.7 mA max @ 5 V, TA=25 ℃ |
| Output current | Iout | 2 mA MAX |
| Output linearity | εl | ≤ ± 1 % @ 0 ~ ± IPN |
| Accuracy | X | ± 2 % @ lPN |
| Thermal drift of Vo | 0.03 %/℃ | |
| hermal drift of Gain | 0.03 %/℃ | |
| di/dt accurately followed | di/dt | > 50 A/μs |
| Frequency bandwidth | f | DC ~ 50 kHz |
| Res ponse time | Tr | 6 μs |
| solation voltage | Vd | 2.5 kV @ 50 ( 60 ) HZ/1 min |
| Operating temperature | To | - 45 ~ + 125 ℃ |
| AC variable speed drives and servo motor drives |
| Static converters for DC motor drives |
| Static converters for DC motor drives |
| Switched Mode Power Supplies ( SMPS ) |

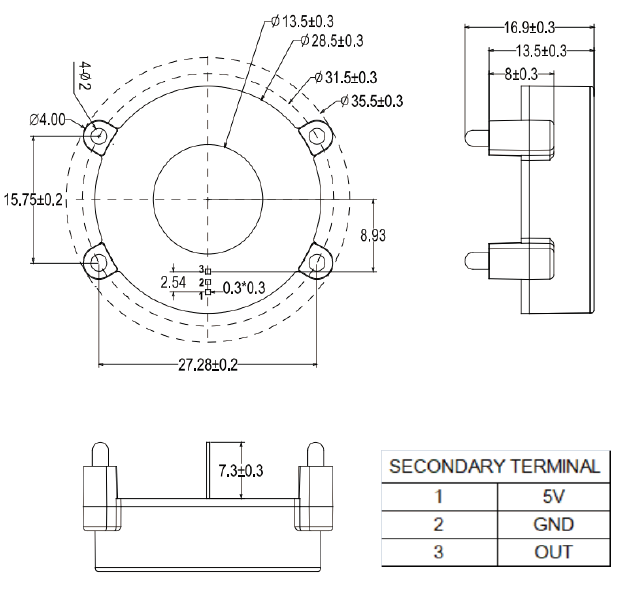

| 13.5 mm windows size |
| 0 ~ 500 A current customized |
